Canon EF 24-105 3.5-5.6 IS STM

Fast Focusing Zoom for Video and Stills

Peter Kun Frary

.

The EF 24-105 3.5-5.6 IS STM, released Fall 2014, is the first full-frame STM zoom from Canon, following in the footsteps of the EF 40 2.8 STM prime. I acquired this lens as part of an 6D MK II kit but it's also available separately. The 4.4X zoom range of wide to short telephoto makes it ideal for general use and travel. Here are my thoughts about the EF 24-105 3.5-5.6 IS STM after a couple months of use.

Pigeon Roost | EOS 6D MK II and EF 24-105 3.5-5.6 IS STM

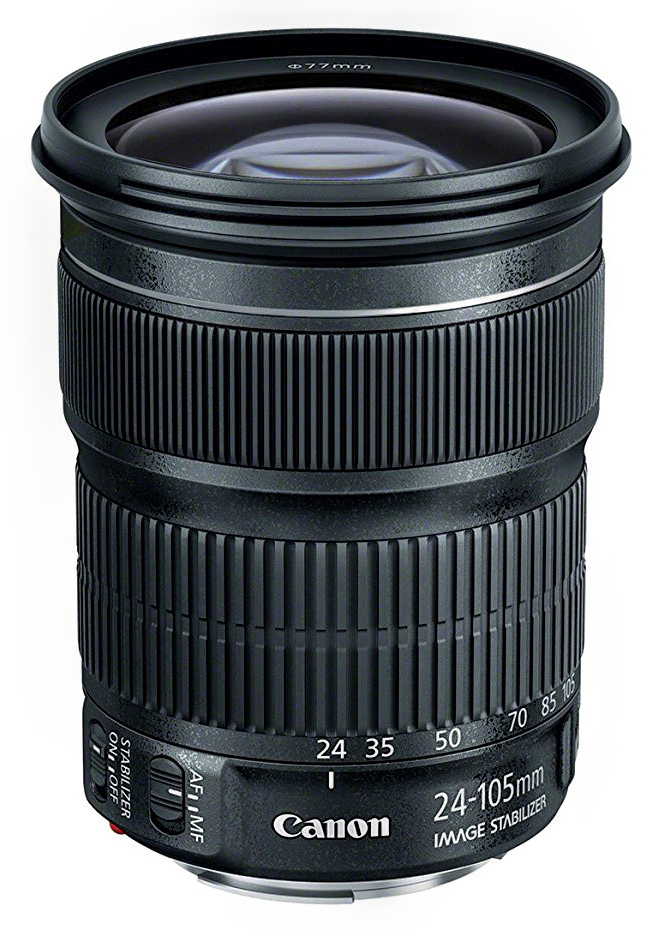

Canon EF 24-105 3.5-5.6 IS STM | Photo courtesy Canon Inc.

This review consists of my opinions and observations as a hobbyist. No scientific measurements, MFT charts or pixel peeking comparisons will be found here.

Compatibility

This lens works on all Canon EOS DSLR cameras such as the 6D, 5D MK IV, Rebel SL3 and 90D. It will also work on EOS R and M series mirrorless cameras with a mount adapter. It does not fit non-Canon cameras such as Pentax, Nikon, Fuji, etc.

Construction

The EF 24-105 3.5-5.6 IS STM feels reasonably solid in hand, sporting excellent fit and finish, sturdy plastics, firm AF and IS switches and metal mount. With that said, it is not built to the same level of sturdiness and weather proofing as an L-series zoom but is comparable to other high quality consumer zooms such as the EF-s 18-135 3.5-5.6 IS USM and EF-s 15-85 3.5-5.6 IS USM.

Cosmetics are striped down and similar to a Goth inspired travel mug: no gold or red decorative rings, DOF markings or distance scale. While not a small lens, it’s noticeably lighter and smaller than the EF 24-105 4L IS USM and EF 24-105 4L IS USM II.

Zoom Action

The zoom ring is large, covered with ribbed rubber, well damped and does not creep, at least after several months of use! A single nested barrel extends considerably, adding about 2 inches in length, when racked out to 105mm. Although zoom action is reasonably smooth, it isn't silky smooth like the EF 24-105 4L IS USM.

Soft Light | EOS 6D MK II and EF 24-105 3.5-5.6 IS STM

Auto Focus

Prior to the release of this lens, all STM zooms were EF-s series, i.e., for APS-C cameras only. The advantage of a STM motor is it allows smooth focus pulls and movie servo with Dual Pixel cameras such as the 5D MK IV and 6D MK II. The AF motor drives an internal lens group and the front element doesn't rotate or extend during focusing. STM lives up to the marketing hype: smooth as silk for pulls and movie servo but not as fast as Ring USM for stills. With that said, the AF of this lens is reasonably peppy and should be fine for most shooting save for high speed sports.

Rose in Soft Light | EOS 6D MK II and EF 24-105 3.5-5.6 IS STM

Manual Focus by Wire

Manual focus (MF) is possible without switching out of AF mode: simply grip and turn. However MF is electronic so the shutter button must be half depressed for manual focus to work (and enabled in the menus). The focus ring, while thinner than the EF 24-105 4L IS USM's ring, is wide and easy to grab for pulls. Distance and DOF scales are MIA, so hyperfocal distance can't be set.

Kremona Mari Ukulele | EOS 6D MK II and EF 24-105 3.5-5.6 IS STM

Image Quality

Initially my lens was soft with the 45-point AF system of the 6D MK II. Live View (Dual Pixel AF) was tack sharp so I figured an AFMA, Autofocus Microadjustment, session was in order. I used the Dot Tune Method to adjust AFMA, yielding accurate results faster than judging dozens of test chart images. This particular lens requires +8 at 24mm and 105mm to be critically sharp. The bottom line is this lens is very sharp once micro-adjusted.

Naturally, I compared it to my old EF 24-105 4L IS USM and, to my surprise, sharpness, color and contrast are very close. Both are slightly soft in the corners but extremely sharp center frame.

Wee Yellow Things | EOS 6D MK II and EF 24-105 3.5-5.6 IS STM | Bokeh and rendering of out of focus highlights are pleasing for a zoom.

In some aspects the EF 24-105 3.5-5.6 IS STM is better than its L-series counterpart: less light fall off and flare and barrel distortion. It focuses slightly closer, .4m compared to .45m. Flare control is excellent: blazing sunsets result in little or no ghosting and flare. Chromatic aberration (CA) is also well controlled: nil CA at 24 mm but CA gradually increases as zoomed toward 105 mm. At 105 mm, magenta fringing is most visible on high contrast edges in the frame corners.

Like the EF 24-105 4L IS USM, the EF 24-105 3.5-5.6 IS STM isn't much of a macro lens. The .4m minimum focus distance (a little over 12 inches) translates to only .3x lifesize magnification, but is close enough for larger flowers. If you want a general purpose zoom with good macro ability, check out the the EF 24-70 4L IS USM.

Morning Dew on Plumbago | EOS 6D MK II and EF 24-105 3.5-5.6 IS STM

Image Stabilization

Rated at four stops of image stabilization (IS), this lens easily bests the IS of the EF 24-105 4L IS USM. Sharp images three stops below my normal hand held shutter speed are the norm. To squeeze out four stops I usually have to brace myself against something and gently squeeze the shutter button as I exhale. There isn’t a panning switch for IS mode but it detects panning and compensates accordingly.

Lens Hood

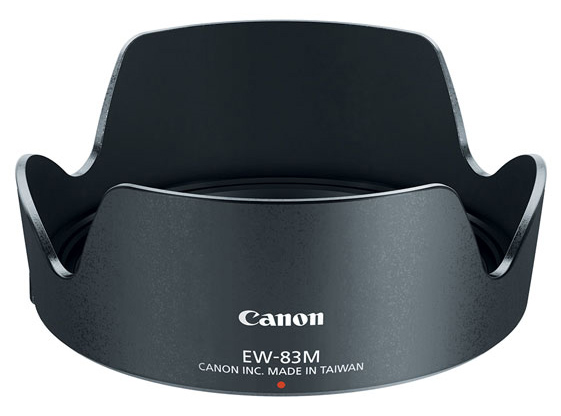

The Canon EW-83M is a locking bayonet lens hood designed to protect this lens from stray light, doggie noses and raindrops. Sadly, it's not included and is available for a cringe worthy 35 shekels. If you have an EW-83L or EW-83H hood lying around they also fit and work perfectly with the EF 24-105 3.5-5.6 IS STM. In fact, the EW-83H, designed for the EF 24-105 4L IS USM, is slightly deeper, providing a wee bit better flare and raindrop protection.

To install, align the Canon logo at 9:00, press into the groove and twist clockwise a quarter turn until it clicks into place. Although it twists on easily, it feels snug once seated and locked. The lock prevents the hood from working loose due to rubbing or light whacks. To release, simply press the lock tab and turn counterclockwise.

Fit and finish are excellent: quality plastic, fingerprint resistant matte black exterior and flat black interior to nix reflections (paint, not rayon flocking). Plus, the exterior finish is perfectly matched to the EF 24-105 3.5-5.6 IS STM lens. The hood can be reverse mounted for compact storage.

The EW-83M works fine but is pricey considering Canon omitted rayon flocking and moved production offshore (Taiwan) to reduce costs. However, inexpensive clones of the EW-83M/H/L are readily available on Amazon and Ebay if you can live without the Canon logo.

Selfie | EOS 6D MK II, EF 24-105 3.5-5.6 IS STM and studio lights

Who Is This Lens For?

To put the EF 24-105 3.5-5.6 IS STM in perspective, optical quality is on par with the EF 24-105 4L IS USM. Of course the latter lens is built better, has weather seals but lacks video friendly STM AF. If you shoot both video and stills and own a camera with Dual Pixel AF, this is the lens for you. Not only is it is lighter and smaller than Canon's EF 24-105 zooms, but is the only STM zoom available for full-frame DSLRs.

If you mainly shoot stills or work in nasty weather, the EF 24-105 4L IS USM is a better choice due to the faster AF and weather seals, especially since refurbs and white box stock are available at the same price as the EF 24-105 3.5-5.6 IS STM.

Final Blurb

I like this lens. In fact, I like it more than the EF 24-105 4L IS USM I owned for years. When used with Movie Servo, it's an able video lens, focusing quickly, smoothly and silently. I love the petite size and weight, zoom range, AF speed/smoothness and sharpness of this lens. Coupled with the 6D MK II, it makes a wonderfully versatile, nimble and lightweight travel and walk-around combo.

Finally, if you're buying this lens, please purchase it at Amazon and help support this website.

Specifications

• Focal Length & Maximum Aperture: 24-105 mm f/3.5–5.6

• Lens Construction: 17 elements in 13 groups

• Two aspheric and one UD element

• Diagonal Angle of View: 84° - 23° 20'

• Aperture Range: Wide f 3.5-36

• Number of Aperture Blades: 7

• Autofocus: STM (stepping motor) AF with full-time manual

• Inner focusing system (no front element extension or rotation for focus)

• Closest Focusing Distance: 16 in. | 0.4m

• Filter Size: 77mm diameter

• Diameter x Length: 83.4 x 104 mm

• Weight: 525 g

• Dedicated hood: EW-83M
